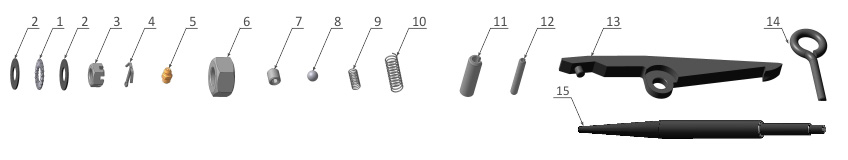

WireLine P Overshot Spare Parts Kit (WL P 07.02.00.000).
.jpg)
Catalog WireLine Core Drill Systems [pdf]
| # | Part # | Name | Q-ty, pieces |
|---|---|---|---|
| 1 | Bearing АК 12х26х2 SSR 26676-85 | 2 | |
| 2 | WL N 02.00.01.003 | Bearing washer | 4 |
| 3 | Nut М12х1.25-6N.8.35 with chemical oxidation SSR 5933-73 | 2 | |
| 4 | Splint pin 2.5х32.4 SSR 397-79 | 4 | |
| 5 | Greaser 1.1. SSR 19853-74 | 2 | |
| 6 | Nut М18-6N.110 with chemical oxidation SSR 22354-77 | 2 | |
| 7 | External screw А.М10-6gх12.22H. with chemical oxidation SSR 11074-93 | 2 | |
| 8 | Ball 9-3 SSR 3722-81 | 2 | |
| 9 | WL N 02.00.00.009 | Compression spring 9 | 2 |
| 10 | WL N 02.00.00.010 | Compression spring 10 | 2 |
| 11 | Pin А.12х50 with chemical oxidation SSR 14229-93 | 2 | |
| 12 | Pin А.6х50 with chemical oxidation SSR 14229-93 | 2 | |
| 13 | WL N 02.00.02.000 | Lifting dog | 4 |
| 14 | WL H 02.00.00.011 | Locking pin | 2 |
| 15 | WL N 07.00.01.000 | Planer | 1 |
* – overshot spare parts kit for 2000 meter borehole in average drilling conditions.
