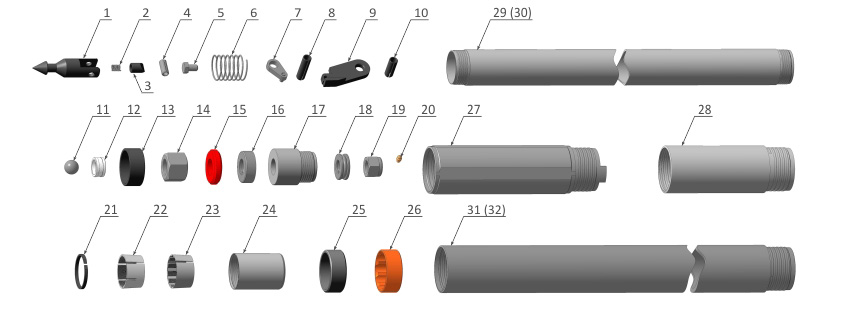

WireLine N Core Barrel Spare Parts (WL N 07.01.00.000) for 1000 meter borehole in average drilling conditions.
Catalog WireLine Core Drill Systems [pdf]
| # | Part # | Name | Q-ty, pieces | Assembly | |||
|---|---|---|---|---|---|---|---|
| 1-32 | WL N 07.01.00.000 | WireLine NRQC core barrel spare parts | ↓ | ||||
| 1-32 | WL N 07.01.00.000-01 | WireLine NQC core barrel spare parts | ↓ | ||||
| 1-32 | WL N 07.01.00.000-02 | WireLine NTC core barrel spare parts | ↓ | ||||
| 1-32 | WL N 07.01.00.000-03 | Wireline NXC core barrel spare parts | ↓ | ||||
| 1 | WL N 01.00.01.001 | Spearhead | 1 | ˅ | ˅ | ˅ | ˅ |
| 2 | WL N 01.00.01.002 | Сompression spring 10 | 1 | ˅ | ˅ | ˅ | ˅ |
| 3 | WL N 01.00.01.003 | Stop plunger | 1 | ˅ | ˅ | ˅ | ˅ |
| 4 | Pin А.10х26 with chemical oxidation SSR 14229-93 | 2 | ˅ | ˅ | ˅ | ˅ | |
| 5 | Screw bolt М10-6gх16.58 SSR 7805-70 | 2 | ˅ | ˅ | ˅ | ˅ | |
| 6 | WL N 01.00.01.006 | Compression spring 40 | 1 | ˅ | ˅ | ˅ | ˅ |
| 7 | WL N 01.00.01.100 | Connecting piece | 4 | ˅ | ˅ | ˅ | ˅ |
| 8 | Pin А.13х50 with chemical oxidation SSR 14229-93 | 2 | ˅ | ˅ | ˅ | ˅ | |
| 9 | WL N 01.00.01.008 | Stopper | 4 | ˅ | ˅ | ˅ | ˅ |
| 10 | Pin А.13х35 with chemical oxidation SSR 14229-93 | 2 | ˅ | ˅ | ˅ | ˅ | |
| 11 | Ball 22-40 SSR 3722-81 | 1 | ˅ | ˅ | ˅ | ˅ | |
| 12 | WL N 01.00.01.009 | Bushing | 2 | ˅ | ˅ | ˅ | ˅ |
| 13 | WL N 01.00.01.010 | Landing shoulder | 1 | ˅ | ˅ | ˅ | ˅ |
| 14 | Nut М 27-6H.8 with chemical oxidation SSR 5915-70 | 1 | ˅ | ˅ | ˅ | ˅ | |
| 15 | WL N 01.00.02.002 | Shut-off valve | 4 | ˅ | ˅ | ˅ | ˅ |
| 16 | Bearing 108905 SSR 520-89 | 1 | ˅ | ˅ | ˅ | ˅ | |
| 17 | WL N 01.00.02.100 | Spindle bushing | 1 | ˅ | ˅ | ˅ | ˅ |
| 18 | Bearing 8204 SSR 7872-89 | 1 | ˅ | ˅ | ˅ | ˅ | |
| 19 | Nut М20-6Н.8.NF SSR R 50273-92 | 1 | ˅ | ˅ | ˅ | ˅ | |
| 20 | Greaser 1.1 SSR 19853-74 | 2 | ˅ | ˅ | ˅ | ˅ | |
| 21 | WL N 05.01.00.001 | N stop ring | 2 | ˅ | ˅ | ˅ | ˅ |
| 22 | WL N 05.02.00.001 | N core lifter | 20 | ˅ | ˅ | ˅ | ˅ |
| 23 | WL N 05.02.00.002 | N core lifter with grooves | 2 | ˅ | ˅ | ˅ | ˅ |
| 24 | WL N 05.03.00.001 | N core lifter case | 4 | ˅ | ˅ | ˅ | ˅ |
| 25 | WL N 05.04.00.001 | N landing ring | 2 | ˅ | ˅ | ˅ | ˅ |
| 26 | WL N 05.05.00.001 | N inner tube stabilizer | 2 | ˅ | ˅ | ˅ | ˅ |
| 27 | WL N 04.01.01.001 | NRQC locking coupling | 2 | ˅ | |||
| 27 | WL N 04.01.02.001 | NQC locking coupling | 2 | ˅ | |||
| 27 | WL N 04.01.03.001 | NTC locking coupling | 2 | ˅ | |||
| 27 | WL N 04.01.05.001 | NXC locking coupling | 2 | ˅ | |||
| 28 | WL N 04.02.00.001 | N adapter coupling | 1 | ˅ | ˅ | ˅ | ˅ |
| 29 | WL N 03.01.00.001 | N inner tube 1.5 m | 1 | ˅ | ˅ | ˅ | ˅ |
| 30 | WL N 03.01.00.001-01 | N inner tube 3.0 m | 2 | ˅ | ˅ | ˅ | ˅ |
| 31 | WL N 03.02.00.001 | N outer tube 1.5 m | 1 | ˅ | ˅ | ˅ | ˅ |
| 32 | WL N 03.02.00.001-01 | N outer tube 3.0 m | 1 | ˅ | ˅ | ˅ | ˅ |
* – WireLine H core barrel spare parts kit for 1000 meter borehole in average drilling conditions.
