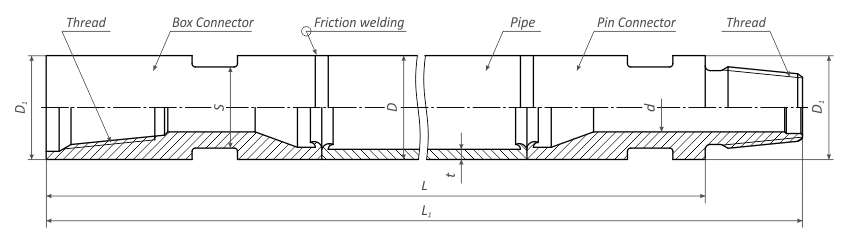

Technical characteristics of Drill Rods
| External diameter of the pipe D, mm | Internal diameter of connector d, mm | External diameter of connector D1, mm | Wall thickness of the pipe t, mm | OD of tong recess S, mm | Length L1, mm | Total length L, mm | Thread |
|---|---|---|---|---|---|---|---|
| 63.5 | 30 | 64 | 6-9 | 50 | 500-1200 | 560-1260 |
Z-53 SSR 51245-99 |
