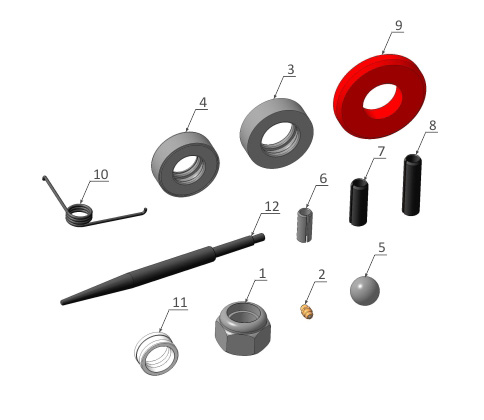

WireLine H Head Spare Parts Kit (WL H 01.00.01.000 ZI).
Catalog WireLine Core Drill Systems [pdf]
| # | Part # | Name | Q-ty, pieces |
|---|---|---|---|
| 1 | Nut М24-6Н.8.NF SSR R 50273-92 | 1 | |
| 2 | Greaser 1.1 SSR 19853-74 | 2 | |
| 3 | Thrust bearing 98206 ТU 37.006.087-79 | 2 | |
| 4 | Thrust bearing 108905 SSR 520-89 | 1 | |
| 5 | Ball 22-40 SSR3722-81 | 1 | |
| 6 | Pin А.10х26 with chemical oxidation SSR 14229-93 | 1 | |
| 7 | Pin А.13х50 with chemical oxidation SSR 14229-93 | 1 | |
| 8 | Pin А.13х70 with chemical oxidation SSR 14229-93 | 2 | |
| 9 | WL H 01.00.02.002 | Shut-off valve | 2 |
| 10 | WL H 01.00.01.012 | Spring | 1 |
| 11 | WL N 01.00.01.009 | Liner | 2 |
| 12 | WL N 07.00.01.000 | Planer | 1 |
