WireLine H Overshot (WL H 02.00.00.000) is designed for running up and down the inner tube as part of Wireline N core barrel.
WireLine H Overshot (WL H 02.00.00.000) is designed for running up and down the inner tube as part of Wireline N core barrel.
Catalog WireLine Core Drill Systems [pdf]

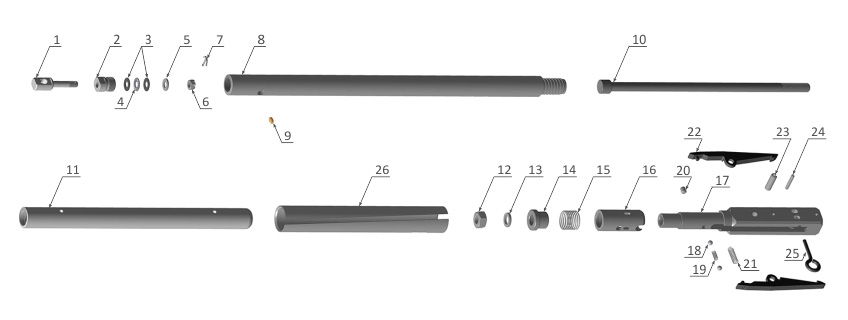

# | Part # | Name | Q-ty, pieces |
---|---|---|---|
1-7 | WL N 02.00.01.000 | Swivel eye | 1 |
1 | WL N 02.00.01.001 | Strap bolt | 1 |
2 | WL N 02.00.01.002 | Hub flange | 1 |
3 | WL N 02.00.01.003 | Thrust washer | 2 |
4 | Bearing АК 12х26х2 SSR 26676-85 | 1 | |
5 | Washer А.12.37 SSR 11371-78 | 1 | |
6 | Nut М12х1.25-6Н.8.35 with chemical oxidation SSR 5933-73 | 1 | |
7 | Split pin 2.5х32.4 SSR 397-79 | 1 | |
8 | WL N 02.00.00.001 | Cable swivel body (upper part of overshot) | 1 |
9 | Greaser 1.1. SSR 19853-74 | 1 | |
10 | WL N 02.00.00.003 | Jar staff | 1 |
11 | WL N 02.00.00.002 | Jar tube (lower part of overshot) | 1 |
12 | Nut М18-6N.110 35 with chemical oxidation SSR 22354-77 | 1 | |
13 | Washer 18 LSSR 6402 | 1 | |
14 | WL N 02.00.00.005 | Overshot cap | 1 |
15 | WL N 02.00.00.006 | Compression spring 40 | 1 |
16 | WL N 02.00.00.007 | Overshot sleeve | 1 |
17 | WL H 02.00.00.008 | Overshot head | 1 |
18 | Ball 9-3 SSR 3722-81 | 2 | |
19 | WL N 02.00.00.009 | Compression spring 9 | 1 |
20 | External screw А.М10-6gх 12.22H. with chemical oxidation SSR 11074-93 | 1 | |
21 | WL N 02.00.00.010 | Compression spring 10 | 1 |
22 | WL N 02.00.02.000 | Lifting dog | 2 |
23 | Pin А.12х50 with chemical oxidation SSR 14229-93 | 1 | |
24 | Pin А.6х50 with chemical oxidation SSR 14229-93 | 1 | |
25 | WL H 02.00.00.011 | Locking pin | 1 |
26 | WL N 02.00.00.004 | Slotted locking sleeve | 1 |
27 | WL H 07.02.00.000 | Spare parts kit of H overshot assembly | 1 |
