Light Alloayed Drill Pipes – light alloyed drill pipes of the new generation – significantly exceeds domestic Light Alloayed Drill Pipes with diameter 54 mm and foreign drill pipes of the nipple joint:
Technical characteristics of Light Alloyed Drill Pipes
| Standard size | Pipe | Connector | Thread | Make-up torque thread, Nm (±5%) | Предельный знакопеременный изгибающий момент, Нм (±5%) | Length L, m | Weight, kg | Torque, Nm (±5%) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|

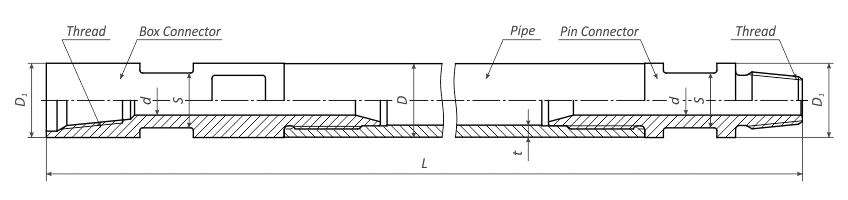

| External diameter D, mm | Wall thickness t, mm | External diameter D1, mm | Internal diameter d, mm | OD of tong recess S, mm | |||||||
| TBL-43.0 | 43.0 | 7.0 | 43.5 | 16 | 30 | Z-34 | 700 | 250 | 3.2 | 9.0 | 400 |
| TBL-43.0 | 43.0 | 7.0 | 43.5 | 16 | 30 | Z-34 | 700 | 250 | 4.7 | 12.3 | 400 |
| TBL-55.0 | 55.0 | 9.0 | 55.5 | 22 | 41 | Z-45 | 1600 | 540 | 3.2 | 15.0 | 830 |
| TBL-55.0 | 55.0 | 9.0 | 55.5 | 22 | 41 | Z-45 | 1600 | 540 | 4.7 | 20.4 | 830 |
| TBL-63.5 | 63.5 | 9.0 | 64.0 | 28 | 46 | Z-53 | 2300 | 775 | 3.2 | 18.8 | 1200 |
| TBL-63.5 | 63.5 | 9.0 | 64.0 | 28 | 46 | Z-53 | 2300 | 775 | 4.7 | 25.2 | 1200 |
| TBL-70.0 | 70.0 | 9.0 | 70.5 | 32 | 46 | Z-57 | 3000 | 890 | 3.2 | 21.2 | 1350 |
| TBL-70.0 | 70.0 | 9.0 | 70.5 | 32 | 46 | Z-57 | 3000 | 890 | 4.7 | 28.4 | 1350 |
| TBL-85.0 | 85.0 | 9.5 | 85.5 | 40 | 55 | Z-67 | 4700 | 1460 | 3.2 | 29.3 | 2240 |
| TBL-85.0 | 85.0 | 9.5 | 85.5 | 40 | 55 | Z-67 | 4700 | 1460 | 4.7 | 38.7 | 2240 |
Note: According to the customer’s agreement we can produce drill pipes with length from 0.8 up to 4.7 m.
Mechanical properties of pipes (at least)
| Parameters | Pipe | Connector |
|---|---|---|
| Tensile strength, MPa | 392 | 882 |
| Yield strength, MPa | 255 | 686 |
| Elongation, % | 12 | 15 |
| Hardness HRC | – | 26 |
Note:
- Mechanical properties of connectors indicated after the volumetric heat treatment.
- Surface hardness after heat treatment – not less 55 HRC.
Using of Light Alloyed Drill Pipes in the operation provides:
- Maximum increase of the drilling productivity with more completely using of speed opportunities of the modern drill equipment in comparison with Universal Steel Drill Pipes;
- Quality increase and the efficiency management of wells’ chassis, also in directional drilling;
- Reduction of the extra tool nomenclature, and also the lightness drill crew’s labour conditions, significant reduction of time for the jostle operations, convenience in transportation;
- Coverage practically the whole set of the soil braking tool on types and diameters, the whole range of exploration wells depths up to 1200 m and the given drill equipment, owing to the wide nomenclature of drill pipes according to diameters and lengths.
Light Alloyed Drill Pipes – light alloyed drill pipes of the new generation – significantly exceeds domestic Light Alloyed Drill Pipes with diameter 54 mm and foreign drill pipes of the nipple joint:
- Owing to the construction features the durability on the bending Light Alloyed Drill Pipes are higher in 35%, than Light Alloyed Drill Pipes with diameter 54 mm and foreign analogues.
- For detachable tool joint’s thread Light Alloyed Drill Pipes it is required to almost less cycles in 2 times as compared with tapered threads of Light Alloyed Drill Pipes with diameter 54 mm till the whole screwing of the threading connection.
- Light Alloyed Drill Pipes are more effective in high-frequency drilling, predominantly in diamond way of drilling, and also in correction of wells’ chassis and in directional drilling.
- The using of analogical outside diameters and detachable connector’ threads provides the complete interchangeability of Light Alloyed Drill Pipes and Universal Steel Drill Pipes, lets to form different optimal cracker of drill column from Universal Steel Drill Pipes and Light Alloyed Drill Pipes.
For example, in drilling of wells in solid soils with bits, which have diameters 93 mm, with the depth of wells 200 and more meters it is important to install in the lower part of the column Universal Steel Drill Pipes-85 with length 15 m (for creation axial load up to 20 KiloNewton), and in the upper part – Light Alloyed Drill Pipes-85. It will allow to use the most high rotation frequencies, which can be saved on significant wells depths having the high safety of the drill column. Besides, the labour conditions of the drill crew will be lighted – during jostle operations there is no use to change elevators, drive-heads and keys of the pipe’s turn and the labour of manual operations with Light Alloyed Drill Pipes of the assistant driller significantly reduces.
