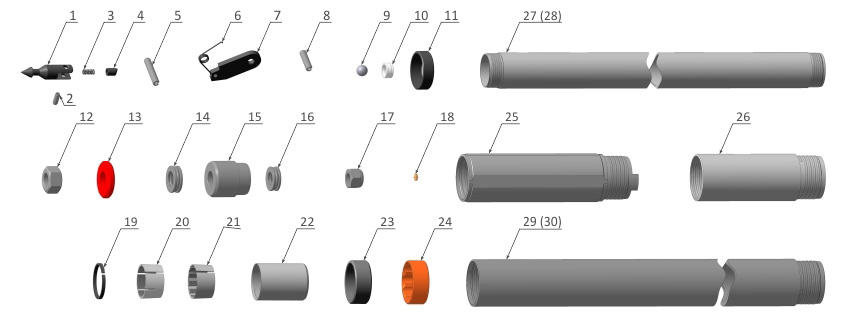

WireLine H Core Barrel Spare Parts (WL H 07.01.00.000) for 1000 meter borehole in average drilling conditions.
Catalog WireLine Core Drill Systems [pdf]
| # | Part # | Name | Q-ty, pieces | Assembly | ||
|---|---|---|---|---|---|---|
| 1-30 | WL H 07.01.00.000 | WireLine HRQC core barrel spare parts | ↓ | |||
| 1-30 | WL H 07.01.00.000-01 | WireLine HQC core barrel spare parts | ↓ | |||
| 1-30 | WL H 07.01.00.000-02 | WireLine HTC core barrel spare parts | ↓ | |||
| 1 | WL N 01.00.01.001 | Spearhead | 1 | ˅ | ˅ | ˅ |
| 2 | Pin А.10х26 with chemical oxidation SSR 14229-93 | 2 | ˅ | ˅ | ˅ | |
| 3 | WL N 01.00.01.002 | Сompression spring 10 | 1 | ˅ | ˅ | ˅ |
| 4 | WL N 01.00.01.003 | Stop plunger | 1 | ˅ | ˅ | ˅ |
| 5 | Pin А.13х70 with chemical oxidation SSR 14229-93 | 2 | ˅ | ˅ | ˅ | |
| 6 | WL H 01.00.01.012 | String | 2 | ˅ | ˅ | ˅ |
| 7 | WL H 01.00.01.008 | Stopper | 4 | ˅ | ˅ | ˅ |
| 8 | Pin А.13х50 with chemical oxidation SSR 14229-93 | 2 | ˅ | ˅ | ˅ | |
| 9 | Ball 22-40 SSR 3722-81 | 1 | ˅ | ˅ | ˅ | |
| 10 | WL N 01.00.01.009 | Bushing | 2 | ˅ | ˅ | ˅ |
| 11 | WL H 01.00.01.010 | Landing shoulder | 1 | ˅ | ˅ | ˅ |
| 12 | Nut М30-6H.8 with chemical oxidation SSR 5915-70 | 1 | ˅ | ˅ | ˅ | |
| 13 | WL H 01.00.02.002 | Shut-off valve | 4 | ˅ | ˅ | ˅ |
| 14 | Bearing 98206 TC 37.006.087-79 | 2 | ˅ | ˅ | ˅ | |
| 15 | WL H 01.00.02.100 | Spindle bushing | 1 | ˅ | ˅ | ˅ |
| 16 | Bearing 108905SSR 520-89 | 1 | ˅ | ˅ | ˅ | |
| 17 | Stover lock Nut М24-6Н.8.NF SSR R 50273-92 | 1 | ˅ | ˅ | ˅ | |
| 18 | Greaser 1.1 SSR 19853-74 | 2 | ˅ | ˅ | ˅ | |
| 19 | WL H 05.01.00.001 | H stop ring | 2 | ˅ | ˅ | ˅ |
| 20 | WL H 05.02.00.001 | H core lifter | 20 | ˅ | ˅ | ˅ |
| 21 | WL H 05.02.00.002 | H core lifter with grooves | 2 | ˅ | ˅ | ˅ |
| 22 | WL H 05.03.00.001 | H core lifter case | 4 | ˅ | ˅ | ˅ |
| 23 | WL H 05.04.00.001 | H landing ring | 2 | ˅ | ˅ | ˅ |
| 24 | WL H 05.05.00.001 | H inner tube stabilizer | 2 | ˅ | ˅ | ˅ |
| 25 | WL H 04.01.01.001 | HRQC locking coupling | 2 | ˅ | ||
| 25 | WL H 04.01.02.001 | HQC locking coupling | 2 | ˅ | ||
| 25 | WL H 04.01.03.001 | HTC locking coupling | 2 | ˅ | ||
| 26 | WL H 04.02.00.001 | Hadaptercoupling | 1 | ˅ | ˅ | ˅ |
| 27 | WL H 03.01.00.001 | Hinner tube 1.5 m | 1 | ˅ | ˅ | ˅ |
| 28 | WL H 03.01.00.001-01 | H inner tube 3.0 m | 2 | ˅ | ˅ | ˅ |
| 29 | WL H 03.02.00.001 | Houter tube 1.5 m | 1 | ˅ | ˅ | ˅ |
| 30 | WL H 03.02.00.001-01 | H outer tube 3.0 m | 1 | ˅ | ˅ | ˅ |
* – WireLine H core barrel spare parts kit for 1000 meter borehole in average drilling conditions.
