    WIRELINE P HEAD ASSEMBLY

    WireLine P Head Assembly (WL P 01.00.00.000) is designed for clamping of inner barrel in outer tube and ensuring of inner tube immobility while drilling.

    WireLine P Head Assembly (WL P 01.00.00.000) is designed for clamping of inner barrel in outer tube and ensuring of inner tube immobility while drilling.

    WIRELINE P HEAD ASSEMBLY


    Catalog WireLine Core Drill Systems [pdf]

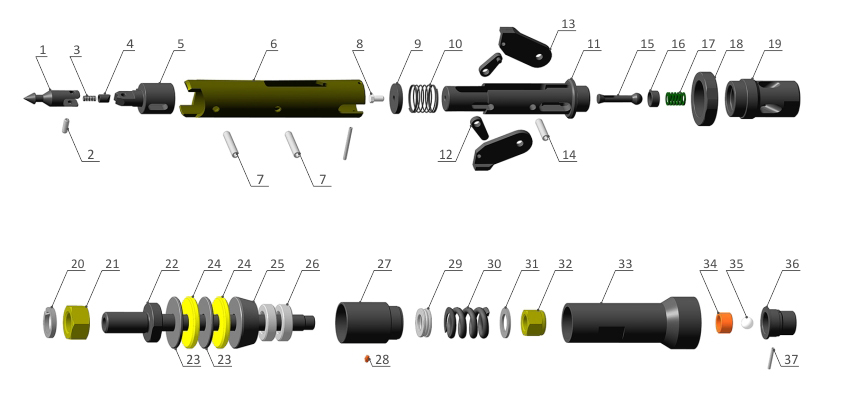

    Head Assembly consists of:

    • upper part of head assembly;
    • lower part of head assembly (bearing unit).

    Upper part of head assembly enables fixing and lifting of head assembly from borehole, lower part of head assembly enables immobility of inner tube while drilling. Core lifter is designed for separating and lifting of core during extracting of inner tube.

    # Part # Name Q-ty, pieces
    1-22 WL P 01.00.01.000 Upper part of P head assembly 1
    1 WL N 01.00.01.001 Spearhead assembly 1
    2 Pin А.10х26 with chemical oxidation SSR 14229-93 1
    3 WL N 01.00.01.002 Сompression spring 10 1
    4 WL N 01.00.01.003 Stop plunger 1
    5 WL H 01.00.01.004 Basement 1
    6 WL P 01.00.01.005 Latch case 1
    7 Pin А.13х70 with chemical oxidation SSR 14229-93 2
    8 Spring pin 6х70 ISO 8750 1
    9 Screw bolt М10-6gх20.58 SSR 7805-70 1
    10 WL P 01.00.01.012 Washer 10х56х9 1
    11 WL P 01.00.01.006 Сompression spring 52 1
    12 WL P 01.00.01.007 Upper latch body 1
    13 WL P 01.00.01.100 Spring 2
    14 WL P 01.00.01.008 Stopper 2
    15 Pin A.13х50 with chemical oxidation SSR 14229-93 1
    16 WL P 01.00.01.016 Valve alarm 2
    17 WL P 01.00.01.015 Liner 1
    18 WL P 01.00.01.017 Compression spring 24 1
    19 WL P 01.00.01.010 Landing shoulder 1
    20 WL P 01.00.01.011 Lower latch body 1
    21 Washer 39 Т SSR 6402-70 1
    22 Nut М39-6H.8 with chemical oxidation SSR 5915-70 1
    23-38 WL P 01.00.02.000 Lower part of P head assembly 1
    23 WL P 01.00.02.001 Spindle 1
    24 WL P 01.00.02.003 Washer 32х71х9 2
    25 WL P 01.00.02.002 Shut-off valve 2
    26 WL P 01.00.02.008 Thrust bearing case 1
    27 Thrust bearing 8208 SSR 520-89 1
    28 WL P 01.00.02.100 Bushing 1
    29 Greaser 1.1 SSR 19853-74 1
    30 Thrust bearing 98206 TC 37.006.087-79 1
    31 WL P 01.00.02.004 Compression spring 58 1
    32 Washer A30.37 SSR 11371-78 1
    33 Nut М30-6Н.8.NF SSR R 50273-92 1
    34 WL P 01.00.02.005 Inner tube cap 1
    35 WL P 01.00.02.009 Back pressure valve washing 1
    36 Ball 22-40 SSR 3722-81 1
    37 WL P 01.00.02.006 Back pressure valve case 1
    38 Spring pin 5х45 ISO 8750-6 1
    39 WL P 01.00.01.000 ZI Spare parts kit of P head assembly 1
