WireLine P Core Barrel (WL P 10.00.00.000) is used in core drilling of boreholes with wireline inner core barrel (WireLine Coring System): drilling of Ø119 mm diameter boreholes up to 1200 m deep in solid, semifractured and fractured rocks of VI-XII drillability category.
WireLine P Core Barrel (WL P 10.00.00.000) is used in core drilling of boreholes with wireline inner core barrel (WireLine Coring System): drilling of Ø96 mm diameter boreholes up to 1600 m deep in solid, semifractured and fractured rocks of VI-XII drillability category. WireLine core barrel is designed for receiving and preserving of core while drilling and also for separating and lifting of core from the borehole bottom to the surface without lifting of drill string.
Catalog WireLine Core Drill Systems [pdf]

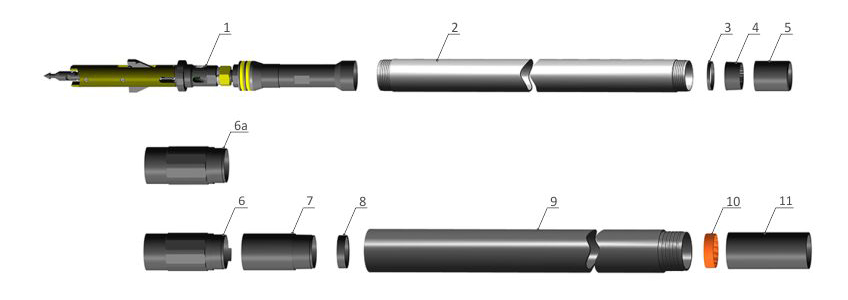

WireLine Core Barrel consists of:
- core barrel;
- locking and adapter couplings;
- outer tube;
- landing ring;
- stabilizer.
Inner barrel consists of:
- P head assembly;
- core lifter;
- inner tube.
| # | Part # | Name | Q-ty, pieces | Assembly | |||||
|---|---|---|---|---|---|---|---|---|---|
| WireLine P Core Barrel | |||||||||
| 1-11 | WL P 10.01.01.000 | PTC core barrel 1.5 m | ↓ | ||||||
| 1-11 | WL P 10.01.02.000 | PTC core barrel 3.0 m | ↓ | ||||||
| 1-11 | WL P 10.02.01.000 | PHDC core barrel 1.5 m | ↓ | ||||||
| 1-11 | WL P 10.02.02.000 | PHDC core barrel 3.0 m | ↓ | ||||||
| P Inner Barrel | |||||||||
| 1-5 | WL P 09.00.00.000 | P inner barrel 1.5 m | ↓ | ||||||
| 1-5 | WL P 09.00.00.000-01 | P inner barrel 3.0 m | ↓ | ||||||
| WireLine P Spare Parts Kit | |||||||||
| 1 | WL P 01.00.00.000 | P head assembly | 1 | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ |
| 2 | WL P 03.01.00.001 | P inner tube 1.5 m | 1 | ˅ | ˅ | ˅ | |||
| 2 | WL P 03.01.00.001-01 | P inner tube 3.0 m | 1 | ˅ | ˅ | ˅ | |||
| 3 | WL P 05.01.00.001 | P stop ring | 1 | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ |
| 4 | WL P 05.02.00.002 | P core lifter with grooves | 1 | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ |
| 5 | WL P 05.03.00.001 | P core lifter case | 1 | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ |
| 6 | WL P 04.01.01.001 | PTC locking coupling | 1 | ˅ | ˅ | ||||
| 6а | WL P 04.01.01.002 | PTC locking coupling | 1 | + | + | ||||
| 6 | WL P 04.01.02.001 | PHDC locking coupling | 1 | ˅ | ˅ | ||||
| 6а | WL P 04.01.02.002 | PHDC locking coupling | 1 | + | + | ||||
| 7 | WL P 04.02.00.001 | P adapter coupling | 1 | ˅ | ˅ | ˅ | ˅ | ||
| 8 | WL P 05.04.00.001 | P landing ring | 1 | ˅ | ˅ | ˅ | ˅ | ||
| 9 | WL P 03.02.00.001 | P outer tube 1.5 m | 1 | ˅ | ˅ | ||||
| 9 | WL P 03.02.00.001-01 | P outer tube 3.0 m | 1 | ˅ | ˅ | ||||
| 10 | WL P 05.05.00.001 | P inner tube stabilizer | 1 | ˅ | ˅ | ˅ | ˅ | ||
| 11 | WL P 04.05.00.001 | P thread protector | 1 | ˅ | ˅ | ˅ | ˅ |
˅ – standard kit of N core barrel (1-11, except 6а), + – optional component (available upon request) (6а).
