    WIRELINE N HEAD ASSEMBLY

    WireLine N Head Assembly (WL N 01.00.00.000) is designed for clamping of inner barrel in outer tube and ensuring of inner tube immobility while drilling.

    WireLine N Head Assembly (WL N 01.00.00.000) is designed for clamping of inner barrel in outer tube and ensuring of inner tube immobility while drilling.

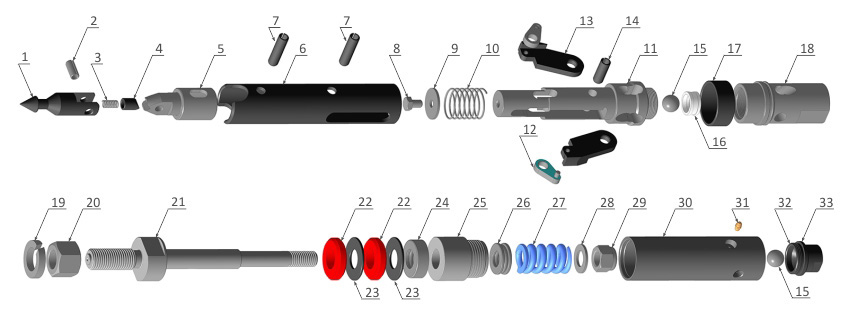

    golovnoj blok n

    Head Assembly consists of:

    • upper part of head assembly;
    • lower part of head assembly (bearing unit).

    Upper part of head assembly enables fixing and lifting of head assembly from borehole, lower part of head assembly enables immobility of inner tube while drilling. Core lifter is designed for separating and lifting of core during extracting of inner tube.

    # Part # Name Q-ty, pieces
    1-20 WL N 01.00.01.000 Upper part of N head assembly 1
    1 WL N 01.00.01.001 Spearhead assembly 1
    2 Pin А.10х26 with chemical oxidation SSR 14229-93 1
    3 WL N 01.00.01.002 Сompression spring 10 1
    4 WL N 01.00.01.003 Stop plunger 1
    5 WL N 01.00.01.004 Basement 1
    6 WL N 01.00.01.005 Latch case 1
    7 Pin А.13х50 with chemical oxidation SSR 14229-93 2
    8 Screw bolt М10-6gх16.58 SSR 7805-70 1
    9 WL N 01.00.01.012 Washer 10х40х3 1
    10 WL N 01.00.01.006 Сompression spring 40 1
    11 WL N 01.00.01.007 Upper latch body 1
    12 WL N 01.00.01.100 Link 2
    13 WL N 01.00.01.008 Stopper 2
    14 Pin A.13х35 with chemical oxidation SSR 14229-93 1
    15 Ball 22-40 SSR 3722-81 2
    16 WL N 01.00.01.009 Bushing 1
    17 WL N 01.00.01.010 Landing shoulder 1
    18 WL N 01.00.01.011 Lower latch body 1
    19 Washer 27 Т SSR 6402-70 1
    20 Nut М27-6H.8 with chemical oxidation SSR 5915-70 1
    21-33 WL N 01.00.02.000 Lower part of N head assembly 1
    21 WL N 01.00.02.001 Spindle 1
    22 WL N 01.00.02.002 Shut-off valve 2
    23 WL N 01.00.02.003 Valve adjusting washer 25х55х3 2
    24 Thrust bearing 108905 SSR 520-89 1
    25 WL N 01.00.02.100 Spindle bushing 1
    26 Thrust bearing 8204 SSR 7872-89 1
    27 WL N 01.00.02.004 Сompression spring38 1
    28 Washer А20.37 SSR 11371-78 1
    29 Nut М20-6Н.8.NF SSR R 50273-92 1
    30 WL N 01.00.02.005 Inner tube cap 1
    31 Greaser 1.1 SSR 19853-74 1
    32 WL N 01.00.02.006 Back pressure valve case 1
    33 WL N 01.00.02.007 Back pressure valve washing 1
    34 WL N 01.00.01.000 ZI Spare parts kit of N head assembly 1
