WireLine N Core Barrel (WL N 10.00.00.000) is used in core drilling of boreholes with wireline inner core barrel (WireLine Coring System): drilling of Ø76 mm diameter boreholes up to 1800 m deep in solid, semifractured and fractured rocks of VI-XII drillability category.
WireLine N Core Barrel (WL N 10.00.00.000) is used in core drilling of boreholes with wireline inner core barrel (WireLine Coring System): drilling of Ø76 mm diameter boreholes up to 1800 m deep in solid, semifractured and fractured rocks of VI-XII drillability category. WireLine core barrel is designed for receiving and preserving of core while drilling and also for separating and lifting of core from the borehole bottom to the surface without lifting of drill string.

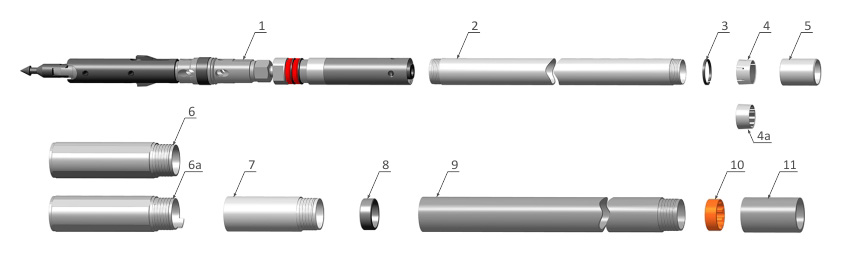

WireLine Core Barrel consists of:
- core barrel;
- locking and adapter couplings;
- outer tube;
- landing ring;
- stabilizer.
Inner barrel consists of:
- N head assembly;
- core lifter;
- inner tube.
# | Part # | Name | Q-ty, pieces | Assembly | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WireLine N Core Barrel | |||||||||||||
1-11 | WL N 10.01.01.000 | NRQC core barrel 1.5 m | ↓ | ||||||||||
1-11 | WL N 10.01.02.000 | NRQC core barrel 3.0 m | ↓ | ||||||||||
1-11 | WL N 10.02.01.000 | NQC core barrel 1.5 m | ↓ | ||||||||||
1-11 | WL N 10.02.02.000 | NQC core barrel 3.0 m | ↓ | ||||||||||
1-11 | WL N 10.03.01.000 | NTC core barrel 1.5 m | ↓ | ||||||||||
1-11 | WL N 10.03.02.000 | NTC core barrel 3.0 m | ↓ | ||||||||||
1-11 | WL N 10.05.01.000 | NXC core barrel 1.5 m | ↓ | ||||||||||
1-11 | WL N 10.05.01.000 | NXC core barrel 3.0 m | ↓ | ||||||||||
N Inner Barrel | |||||||||||||
1-5 | WL N 09.00.00.000 | N inner barrel 1.5 m | ↓ | ||||||||||
1-5 | WL N 09.00.00.000-01 | N inner barrel 3.0 m | ↓ | ||||||||||
WireLine N Spare Parts Kit | |||||||||||||
1 | WL N 01.00.00.000 | N head assembly | 1 | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ |
2 | WL N 03.01.00.001 | N inner tube 1.5 m | 1 | ˅ | ˅ | ˅ | ˅ | ˅ | |||||
2 | WL N 03.01.00.001-01 | N inner tube 3.0 m | 1 | ˅ | ˅ | ˅ | ˅ | ˅ | |||||
3 | WL N 05.01.00.001 | N stop ring | 1 | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ |
4 | WL N 05.02.00.001 | N core lifter | 1 | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ |
4а | WL N 05.02.00.002 | N core lifter with grooves | 1 | + | + | + | + | + | + | + | + | + | + |
5 | WL N 05.03.00.001 | N core lifter case | 1 | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ |
6 | WL N 04.01.01.001 | NRQC locking coupling | 1 | ˅ | ˅ | ||||||||
6а | WL N 04.01.01.002 | NRQC locking coupling | 1 | + | + | ||||||||
6 | WL N 04.01.02.001 | NQC locking coupling | 1 | ˅ | ˅ | ||||||||
6а | WL N 04.01.02.002 | NQC locking coupling | 1 | + | + | ||||||||
6 | WL N 04.01.03.001 | NTC locking coupling | 1 | ˅ | ˅ | ||||||||
6а | WL N 04.01.03.002 | NTC locking coupling | 1 | + | + | ||||||||
6 | WL N 04.01.05.001 | NXC locking coupling | 1 | ˅ | ˅ | ||||||||
6a | WL N 04.01.05.002 | NXC locking coupling | 1 | + | + | ||||||||
7 | WL N 04.02.00.001 | N adapter coupling | 1 | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ||
8 | WL N 05.04.00.001 | N landing ring | 1 | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ||
9 | WL N 03.02.00.001 | N outer tube 1.5 m | 1 | ˅ | ˅ | ˅ | ˅ | ||||||
9 | WL N 03.02.00.001-01 | N outer tube 3.0 m | 1 | ˅ | ˅ | ˅ | ˅ | ||||||
10 | WL N 05.05.00.001 | N inner tube stabilizer | 1 | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ||
11 | WL N 04.05.00.001 | N thread protector | 1 | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ | ˅ |
˅ – standard kit of N core barrel (1-11, except 4а and 6а), + – optional component (available upon request) (4а, 6а).
