    ZBO U15A

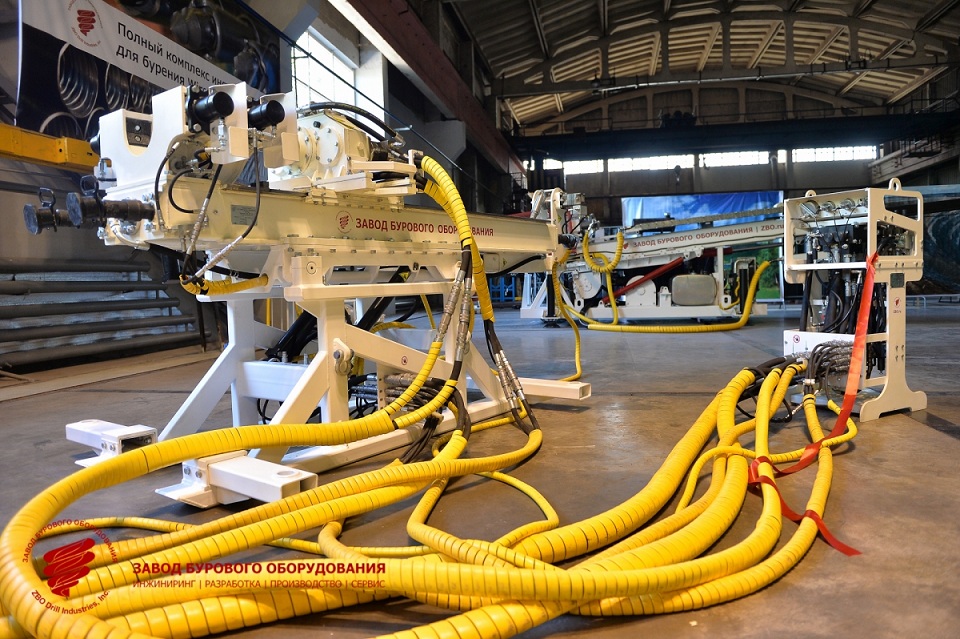

    ZBO U15 drilling rig designed for technological underground drilling down, up and under any angle fully replaces import analogs and compared to them has the following advantages:

    • modular explosion proof design for use in aggressive environments;
    • complex supply with a set of drilling tools;
    • service;
    • ZBO U15 price is lower than of similar imported models.

    Due to compact size and power drilling rig can be used in limited space conditions. Modular design and several equipment options allow to use ZBO U15 also for exploration drilling.

    ZBO U15A

    Technical specifications

    TECHNICAL PARAMETERS ZBO U15A
    Wireline core drilling
    Wireline drill rod sizes TBSU rods are used
    Wireline drill rod length, mm 1500
    Drilling with roller cone bits without coring
    with 244 mm diameter 10 m
    with 190,5 mm diameter 40 m
    with 132 mm diameter 300 m
    with 112 mm diameter 500 m
    DTH drilling without coring
    with 195 mm diameter 40 m
    with 130 mm diameter 300 m
    with 110 mm diameter 500 m
    Normative operating lifetime 3 years
    Drilling angle, ° from -90 to +90
    Dimensions
    Drilling unit 3450х1050х1760 mm
    Power unit 2250х1050х1660 mm
    Control unit 545х645х1295 mm
    Weight, kg
    Drilling unit 2230
    Power unit 1640
    Control panel 220
    DRILLING RIG COMPOUNDS
    Drilling unit
    Feed force, kN 100
    Pull-up force, kN 100
    Feeding device 2-side telescopic hydraulic cylinder
    Feeding length, m 1,8
    Operating range of lafet, ° from -90 to +90
    Rotary head
    Rotary head type not passing through
    Speed range, rpm 0-200
    Maximum torque, Nm 4200
    Clamping device
    Type with one rotary section
    Passage diametr, mm 243
    Holding force, kg 147
    Winch
    Hook load at empty/full drum, kg 3000
    Speed at empty/full drum, m/min 41,4/-
    Cable diameter, mm 8
    Cable length, m 10
    Brakes brake valves
    Power block
    Drive type electric
    Capacity, kW 75
    Revolution, rpm up to 1500
    Hydraulic system
    Main pump with variable capacity
    Operating pressure, bar up to 310
    Auxiliary pump with variable capacity
    Operating pressure, bar up to 310
    Volume of the tank for the hydraulic fluid, l 175
    Oil cooler Air
    Drive type Hydraulic
    Control unit
    Control devices Manometers
    Feed force +
    Holding force +
    Torque +
    Pressure of the main pump +
    Pressure of the auxiliary pump +
    The supplier guarantees a proper performance under the operating and design conditions for a period of twelve (12) month reckoned from the dispatch of our premises or 2000 operating hours, whatever occurs first.
